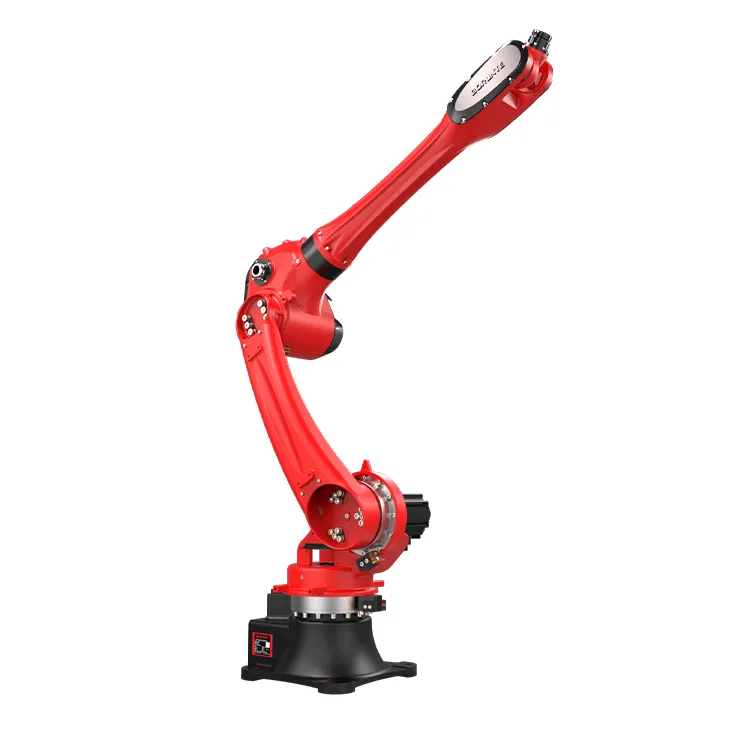

Brtirus2110a
Cov Khoom Qhia:
Kev Siv Ntev Dav Dav Dav Dav Hlau Hlau nrog 10Kg Chaw thau khoom thiab 2100 hli Super ntev tus nqi ua tau zoo, yooj yim ntawm txij nkawm, thiab kev teeb tsa. Brtirus2110a tuaj yeem thauj khoom thiab tsis tso tawm, tig mus, thiab cov hlau rov qab, thiab lwm yam khoom siv. Nws tsis cia siab rau ntawm lub tshuab cov maub los rau kev tswj hwm, thiab cov tswj hwm kev siv cov cuab yeej tswj tau cais uas tsis muaj qhov cuam tshuam rau cov cuab yeej siv tshuab. Nws ua haujlwm ruaj khov, muaj ib tug txhav zoo heev, thiab yog qhov yooj yim heev los tswj. Qhov precision ntawm kev tso rov qab yog 0.05mm.
Taw qhia ntawm ntev npab dav dav Kev siv hlau:
Brtirus2110a yog General - lub hom phiaj rau- Axis Robot. Nws muaj cov duab sib xyaw thiab kev tsim kho, thiab txhua qhov sib koom ua ke muaj qhov siab- precision reducer. Tuav, Stacking, Assombly, thiab lwm yam kev ua si yuav tau nqa tawm hauv qhov chaw tsawg vim tias kom lub siab- ceev sib koom ua kom nrawm. Nws los nrog kev teeb tsa muaj ntau yam.
Ib qho chaw ib puag ncig:
(1) Khoom siv tuav thiab txheej
(2) ntim khoom thiab sib dhos ua ke
(3) sib tsoo thiab polishing
(4) Laser Vuam
(5) chaw vuam
(6) dabtsi yog khoov
(7) txiav / deburring
Lub ntsiab ntsuas:
|
Cov khoom |
Ntawv |
Pawg muaj nqi |
|
Lub cev tsis |
Tshaj Plaws Ua Haujlwm Hluav Taws Xob |
2100mm |
|
Max Loading |
10kg |
|
|
Rov ua dua qhov tseeb |
± 0.05mm |
|
|
Tuss |
Lub cev ip54; Dab teg ip40 |
|
|
Qho hnyav |
Txog 230kg |
|
|
Cov Lus Nrov |
J1 |
155 degree |
|
J2 |
-90 Degree (-140 Qib Qaum Kev Soj Ntsuam Cov Soj Ntsuam Sab Nraud Kho) {{-+65 degree |
|
|
J3 |
-75 Degree -+110 degree |
|
|
J4 |
± 180 degree |
|
|
J5 |
115 degree |
|
|
J6 |
± 360 360 360 360 360 360 |
|
|
Max Ceev |
J1 |
110℃/ s |
|
J2 |
146 Degree / s |
|
|
J3 |
134 DEGREE / S |
|
|
J4 |
273 Degree / s |
|
|
J5 |
300℃/ s |
|
|
J6 |
336 Degree / s |
Cov Khoom Siv Khoom thiab Cov Ntawv Ntawm Ntev Npab Dav Dav Dav Hlau Dav Hlau:
1. Kaw cov neeg hlau ua haujlwm cais tawm suab nrov thiab hmoov av los ntawm sab nraud los txo cov pa phem ib puag ncig.
2. Cov neeg ua haujlwm tsis ncaj qha hu ncaj qha rau cov khoom siv phom sij, kom zam dhau qhov tshwm sim ntawm cov xwm txheej muaj kev nyab xeeb.
3. Tus neeg hlau tuaj yeem ua kom muaj kev sib xws ntawm cov khoom lag luam raug, uas tsis tsuas yog ua kom muaj kev ntseeg siab zoo, tab sis kuj txo cov kev tsis lees txais tus nqi.
Tuav Txoj Kev:

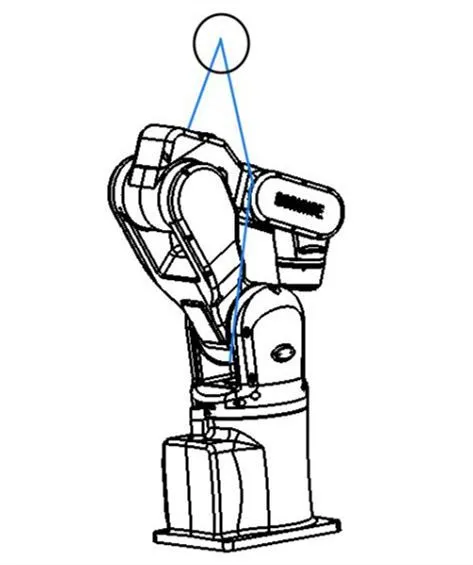

Cranes yuav tsum tau siv thaum tuav neeg hlau. Rau txoj kev tuav tes, thov saib Daim Duab 4.1. Ua ntej, teev cov hlau xa raws li lub puab txheej ntawm lub tshuab rov qab los ntawm qis dua ntawm ob qho kawg ntawm cov fuselage kom tsis txhob muaj rollover. Qhov ntev ntawm txoj kev nqa txoj siv sia yog pom zoo kom yog 1.8m.
